2020-2024 Low Rider S Cable Extension Fitment Guide

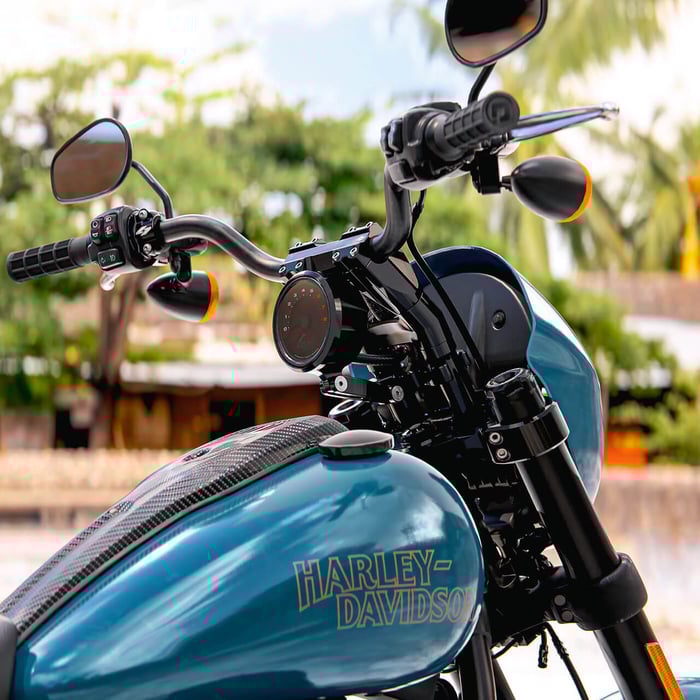

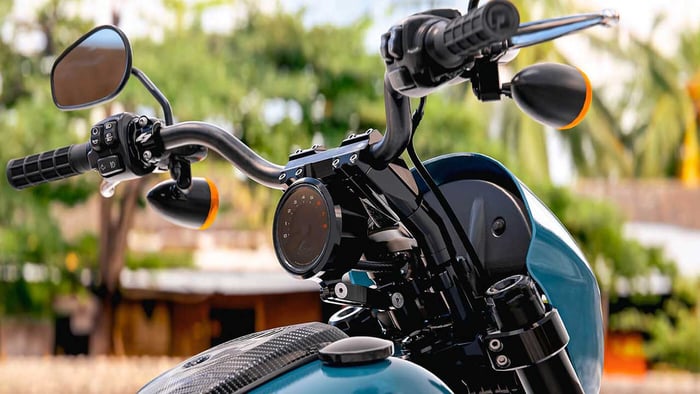

After installing a new exhaust on your Low Rider S and maybe an air cleaner then next thing to tackle is those handlebars!  Time to bolt-on a new setup and make the FXLRS more comfortable and nimble.Figuring out what length cable, brake line and wiring can be a little  tricky. Simply pick out the risers and handlebar of your choice and use the guide below to make the cable extension and wiring extensions easy. Some popular combinations are below, but if you're not running that exact setup, don't worry! Simply look at the overall height measurement and if it matches up then all part numbers should still apply. Just note, if you're running a pullback plate on any handlebar setup then take that extra pullback into consideration as that will require even longer cables/wiring.

Also, if Turn signals are staying on the bars then you'll also need an extension kit to match - link for that here.

1. Risers / Handlebars: OEM

• Overall: 9.5
• Upper Clutch Cable: OEM
• Upper Brake Line: OEM
• Switch Harness: OEM
• Speedometer: OEM
• TBW Harness: OEM

2. Risers / Handlebars: Kraus 8" S-One Pro Kit or  Kraus Bully S 8” Pro Kit

• Overall: 10.5
• Upper Clutch Cable: OEM
• Upper Brake Line: OEM
• Switch Harness: OEM but will require connections to be removed from caddy
• Speedometer: OEM
• TBW Harness: OEM

3. Risers / Handlebars: Kraus 10" S-One Pro Kit or Kraus Bully S Pro 10" T-Bar Kit

• Overall: 12.5
• Upper Clutch Cable: 0652-2475 - 38" Cable
• Upper Brake Line: 1742-0658 - Adapter and 1741-6161 - Brake Line - 26"
• Switch Harness: 24020-1106 - 6" Extensions
• Speedometer: 2022-Up Only - 24080-1027 - 25" Harness
• TBW Harness: 24025-1606- 6" Extension

4. Risers / Handlebars: OG 8.5”Risers / ODI Podium Bar

• Overall: 12.5
• Upper Clutch Cable: 0652-2475 - 38" Cable
• Upper Brake Line: 1742-0658 - Adapter and 1741-6161 - Brake Line - 26"
• Switch Harness: 24020-1106 - 6" Extensions
• Speedometer: 2022-Up Only - 24080-1027 - 25" Harness
• TBW Harness: 24025-1606- 6" Extension

5. Risers / Handlebars: Thrashin 9.5" Pullback / Thrashin Mid Bend Bars

• Overall: 13.5
• Upper Clutch Cable: 0652-2476 - 40" Cable
• Upper Brake Line: 1742-0658 – Adapter and 1741-6162 - Brake Line - 28"
• Switch Harness: 24020-1106 - 6" Extensions
• Speedometer: 2022-Up Only - 24080-1027 - 25" Harness
• TBW Harness: 24025-1606- 6" Extension
